Gutter Sizing Guide: SMACNA Math + Worked Examples (2026)
Most residential gutter overflow problems are sizing problems, not material problems. Here is how SMACNA actually sizes K-style gutters and downspouts — with worked examples for the four metros we work in.
Most residential gutter overflow problems are sizing problems. A gutter that has a single 2x3 downspout on a 40-foot run feeding a complex roof can overflow during a moderate storm even if the gutter itself is brand new. The math to size correctly is not hard, but it requires actually doing it.
This guide walks through the SMACNA sizing approach, explains the capacity differences between 5" and 6" K-style and between 2x3 and 3x4 downspouts, and works through real examples for Austin, Houston, New Orleans, and St. Louis using NOAA Atlas 14 rainfall intensities.
Why Sizing Matters
An undersized gutter system causes:
- Overflow at the gutter front lip, dumping water at the foundation perimeter
- Foundation damage from saturated soil and basement intrusion (severe in expansive clay markets like Austin and Houston)
- Fascia rot behind the gutter from chronic overflow
- Splash-back staining on lower courses of siding and masonry
- Backed-up water against the drip edge during heavy storms
The right answer is to size correctly the first time. The wrong answer is to live with chronic overflow because re-gutter is expensive.
The SMACNA Method
The Sheet Metal and Air Conditioning Contractors' National Association publishes the standard reference for gutter and downspout sizing. The basic factors:
- Drainage area. The roof plan area that feeds a given gutter run. Half the roof for a simple gable; can be larger for complex roofs with multiple valleys feeding one gutter.
- Roof pitch factor. Steeper roofs catch more wind-driven rain per square foot of plan area. SMACNA tables apply a multiplier — flat roofs use 1.0; steep roofs can multiply effective drainage by 1.2 or more.
- Rainfall intensity. The design rainfall rate in inches per hour. Most residential sizing uses a regional 100-year, 5-minute or 60-minute intensity from NOAA Atlas 14. SMACNA reference benchmark is 4 in/hr.
- Gutter cross-sectional capacity. 5-inch K-style holds about 1.2 gallons per linear foot; 6-inch K-style holds about 2.0 gallons per linear foot.
- Downspout count and size. Often the bottleneck. Two 3x4 downspouts move significantly more water than one 2x3.
SMACNA also publishes an online Downspout and Gutter Sizing Calculator that does the math.
5" vs 6" K-Style Capacity
| Profile | Capacity (gal/LF) | Drainage at 4 in/hr |
|---|---|---|
| 5" K-style | ~1.2 | ~5,520 sq ft |
| 6" K-style | ~2.0 | ~7,960 sq ft |
The 6" K-style has roughly 67% more volume per linear foot than 5" and handles approximately 44% more drainage area at the same rainfall benchmark.
2x3 vs 3x4 Downspouts
Downspout cross-sectional area:
- 2x3: 6 square inches
- 3x4: 12 square inches (exactly 2x the 2x3 area)
3x4 downspouts move roughly twice the water of 2x3. For 6-inch gutter installs, 3x4 downspouts are the standard pairing — a 6-inch gutter with 2x3 downspouts is bottlenecked at the downspouts.
Downspout count matters as much as size. A 50-foot gutter run with one downspout at the far end is poorly designed regardless of downspout size — water has to travel the full length of the gutter to drain. Add intermediate downspouts on long runs.
Rainfall Intensity by Market
The 4 in/hr SMACNA benchmark is a reasonable starting point but real local intensity varies significantly. Houston and New Orleans routinely exceed it during gulf-coast deluge events. We size to actual local intensity using NOAA Atlas 14 data.
General intensity ranking among our four markets (highest to lowest peak short-duration rainfall):
- Houston — highest peak intensity. Tropical-system rainfall can exceed 4 in/hr for sustained periods.
- New Orleans — frequent tropical-system rainfall, similar to Houston.
- Austin — high short-duration intensity but typically less sustained than gulf coast.
- St. Louis — lower peak intensity than gulf-coast markets but still significant during summer thunderstorms.
Get your specific NOAA Atlas 14 data for your address before bidding any complex install.
Worked Examples
Example 1: 2,500 sq ft Austin Home, Simple Gable
Roof drains to two long runs (front and back), each carrying 1,250 sq ft of drainage area. At a moderate 4 in/hr rainfall:
- 5-inch K-style: handles 5,520 sq ft per SMACNA reference. 1,250 sq ft per run is well within capacity. Adequate.
- 2x3 downspouts: one at each end of each run is fine.
- Verdict: 5-inch K-style with 2x3 downspouts adequate.
Example 2: 2,500 sq ft Houston Home, Same Configuration
Same roof, but Houston rainfall intensity exceeds 4 in/hr during tropical-system events. SMACNA capacity at higher rainfall scales down:
- 5-inch K-style: may overflow at peak intensity events.
- 6-inch K-style: 7,960 sq ft at the 4 in/hr benchmark, with margin at higher local intensity.
- 3x4 downspouts: double the cross-section of 2x3, prevent downspout bottleneck.
- Verdict: 6-inch K-style with 3x4 downspouts standard for Houston.
Example 3: 3,500 sq ft Complex Roof in NOLA, Multiple Valleys
Complex roof with 3 valleys feeding one main gutter run on the long elevation. Drainage area to that single run is approximately 2,000 sq ft.
- 6-inch K-style: handles 7,960 sq ft per SMACNA. 2,000 sq ft on one run is well within capacity.
- Downspouts: at higher rainfall intensity, two 3x4 downspouts (one at each end of the long run) provide redundancy.
- Hidden hangers: 24-inch maximum spacing for hurricane wind resistance.
Example 4: 2,000 sq ft St. Louis Two-Story, North-Facing Eave Concern
2,000 sq ft drainage divided across multiple runs. Lower local rainfall intensity than gulf coast.
- 5-inch K-style: adequate capacity for typical drainage areas.
- .032 gauge aluminum: hail-aware default in the hail belt.
- 24-inch max hidden hanger spacing on north-facing eaves: snow-load uplift resistance.
- Heat tape consideration: if the home has chronic ice-dam history.
Common Sizing Mistakes
- Sizing the gutter to the roof footprint, not the drainage area. Complex roofs with valleys can have drainage areas much larger than the eave length suggests.
- Ignoring the downspout bottleneck. Capacity at the gutter is only useful if the downspouts can move the water out.
- Defaulting to 5-inch in gulf-coast deluge markets. Houston and NOLA routinely justify 6-inch.
- One downspout on a long run. Add intermediate downspouts to reduce flow distance.
- Using the 4 in/hr SMACNA benchmark when local intensity is significantly higher. Get NOAA Atlas 14 data for your specific address.
- Skipping the slope. Gutters need about 1/4-inch fall per 10 feet toward the downspout. Too little holds water; too much looks bad.
Frequently Asked Questions
Frequently Asked Questions
The most obvious signs are overflow at the gutter front lip during heavy rain, splash-back staining on siding below, and standing water at the foundation perimeter after storms. If you have any of these, the system is undersized for the drainage area or downspout-bottlenecked. The fix is usually upsizing to 6-inch with 3x4 downspouts, or adding intermediate downspouts on long runs.
Material cost premium is modest — typically 20-40% more per linear foot for 6-inch K-style aluminum. Combined with 3x4 downspouts (which are the right pairing), total system cost runs perhaps 30-50% above a 5-inch system with 2x3 downspouts. Worth it for any gulf-coast deluge market or for any home with chronic-overflow history.
SMACNA tables size downspout count by roof drainage area and rainfall intensity. As a rule of thumb, every gutter run over 35-40 feet should have an intermediate downspout, not just one at the far end. For 6-inch systems, 3x4 downspouts are the standard pairing.

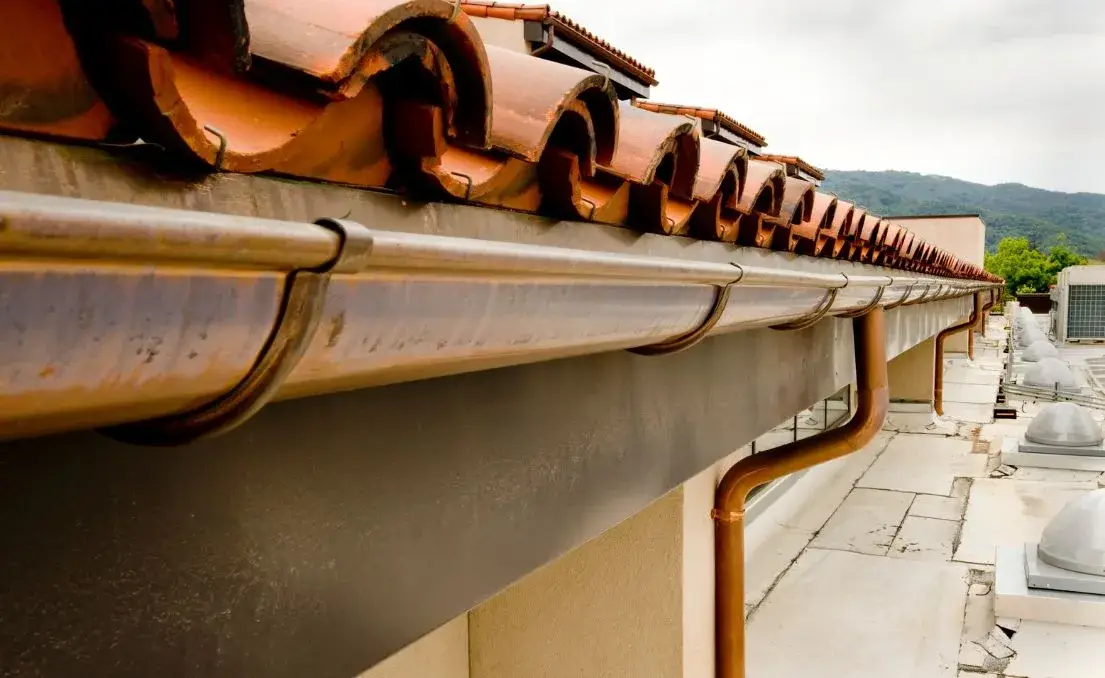

Half-round profiles hold less water per inch of width than K-style. They are reserved for historic and architectural applications where the cleaner profile justifies the lower capacity per inch. For most residential work, K-style is the right call. Half-round 6-inch capacity is roughly comparable to K-style 5-inch.
Atlas 14 publishes verified rainfall intensity data at the parcel level for the entire United States. Using actual local intensity for your address produces more accurate sizing than relying on the SMACNA 4 in/hr reference benchmark — particularly important in gulf-coast markets where local 100-year, 60-minute intensities can significantly exceed the benchmark.
Yes, often the most cost-effective fix for chronic overflow problems. If the gutter capacity itself is adequate but the existing downspout is bottlenecked, adding intermediate downspouts on long runs solves the problem without re-guttering. We assess this on a per-home basis during the bid walk.
For most residential work, .032 gauge is the right call. The lighter .027 gauge is acceptable in milder climates without heavy snow load or hurricane exposure. We default to .032 on 6-inch gutters and on any home in St. Louis (snow load), coastal Louisiana, or Houston (wind load).
Steeper roofs catch more wind-driven rain per square foot of plan area. SMACNA tables apply a multiplier — flat roofs use 1.0; steep roofs can multiply effective drainage by 1.2 or more. For very steep roofs, consider this when sizing.
